VR1 PULSER SPECIFICATIONS
|
INPUT Specifications |
Wire Color |
Black (110vac), Orange (12vdc) |
Operating Voltage |
12VDC (VRI1-12-SO or VR1-12-DO)
120VAC (VR1-110-SO or VR1-110-DO)
|
Operating Temperature |
-40 to +150 degrees F |
Maximum Speed |
250 RPM |
OUTPUT Specifications |
Wire Color |
Red wires |
Switching Voltage |
5 to 300 Volts AC or DC |
Maximum Current |
300 mA |
On Resistance |
25-35 Ohms |
MODEL NUMBERS
|
MODEL NUMBER |
DESCRIPTION |
VR1-12-SO |
VR1 Pulser, 12 volts DC, Single Output |
VR1-12-DO |
VR1 Pulser, 12 volts DC, Dual Output |
VR1-110-SO |
VR1 Pulser, 110 volts AC, Single Output |
VR1-110-DO |
VR1 Pulser, 110 volts AC, Dual Output |

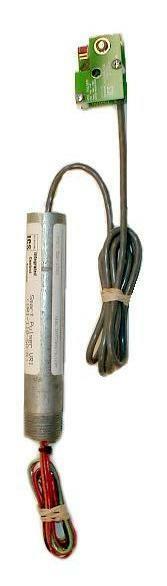

VR1 Pulser
The VR1 Pulser was designed to fit the Veeder Root model 7886 or 7887 commercial meter-registers. It contains the same direction sensing technology as the SP1 pulser, which eliminates pulse errors due to vibration or meter backlash. The VR1 pulser brings electronic pump acuracy to commercial fueling.
FEATURES
- Fits both 7886 and 7887 meter-registers
- Fits inside existing meter-register cabinet for easy installation
- Generates either 1, 10, or 100 pulses per gallon
- Microprocessor controlled direction sensing eliminates over-counts due to pump vibration or meter backlash.
- Up to 2500 gallons per minute on 7886 and 250 gallons per minute on 7887.
- Machined aluminum coupling shaft
- Stainless steel encoder wheel is impervious to the elements
- Dual bearing construction promotes long pulser life
- Configuration settings made on pulser head for easy access
- Intrinsically safe circuitry, no conduit required!
- Environmentally coated circuitry eliminates moisture problems
- Extended temperature operation. (-40 to 150 degrees F)
- 12VDC and 110VAC models available
- Dual output model available
- 2 year warranty
