SP1 PULSER SPECIFICATIONS
|
INPUT Specifications |
Wire Color |
Black (110vac), Orange (12vdc) |
Operating Voltage |
12VDC (SP1-12-SO or SP1-12-DO)
120VAC (SP1-110-SO or SP1-110-DO) |
Operating Temperature |
-40 to +150 degrees F |
Maximum Speed |
240 RPM |
OUTPUT Specifications |
Wire Color |
Red wires |
Switching Voltage |
5 to 300 Volts AC or DC |
Maximum Current |
300 mA |
On Resistance |
25-35 Ohms |
SP1 Smart Pulser

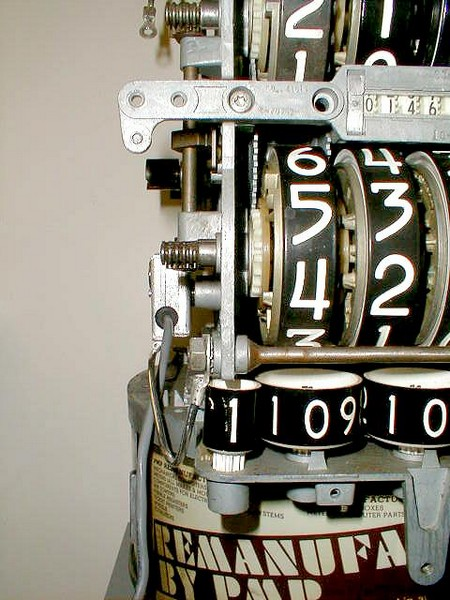

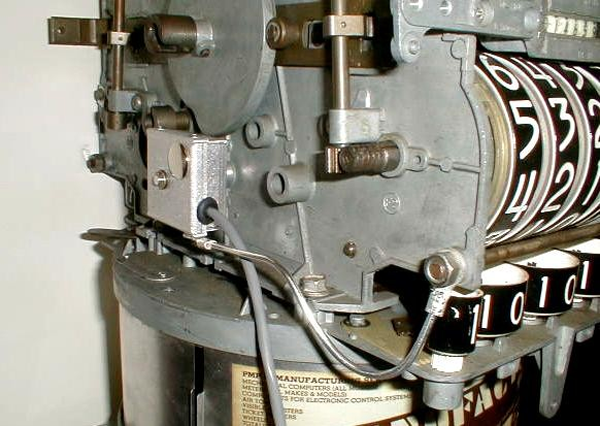

The SP1 Smart Pulser was designed to fit any Veeder-Root™ computer, so stocking multiple pulser models is unnecessary. The SP1 was designed to be very durable, and contains special circuitry to eliminate errors, which makes is more accurate than any other pulser on the market.
SP1 SHAFT ADAPTERS
Some SP1 pulser applications may require the use of a shaft adapter for the pulser to clear gearing or other parts. For this situation, ICS makes a machined extension shaft which can be cut to different lengths, depending on the application. For more information, click the SP1 shaft adapter link below.
SP1 Shaft Adapters
MODEL NUMBERS
|
MODEL NUMBER |
DESCRIPTION |
SP1-12-SO |
SP1 Pulser, 12 volts DC, Single Output |
SP1-12-DO |
SP1 Pulser, 12 volts DC, Dual Output |
SP1-110-SO |
SP1 Pulser, 110 volts AC, Single Output |
SP1-110-DO |
SP1 Pulser, 110 volts AC, Dual Output |
ADAPTER MODEL NUMBERS
|
MODEL NUMBER |
DESCRIPTION |
SP1-EXT-DP |
Machined Aluminum Shaft Adapter |
SP1-EXT-FLEX |
7 in. Flexible Shaft Adapter |
FEATURES
- ALL METAL Construction!
- All aluminum housing. (No plastic!)
- Machined aluminum coupling shaft. (No more breakage!)

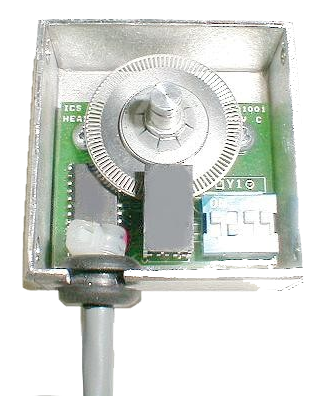

- Stainless Steel encoder wheel is impervious to the elements
- Dual bearing construction promotes long pulser life
- Microprocessor controlled direction sensing eliminates over-counts due to pump vibration or meter backlash

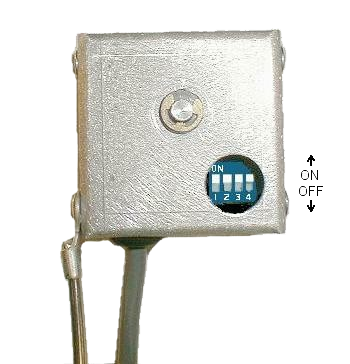

- Configuration setting made in pulser head for easy access
- Intrinsically safe circuitry, no conduit required!
- Environmentally coated circuitry eliminates moisture problems.
- Heavily filtered power supply eliminates noise problems
- Extended temperature operation. (-40 to 150 degrees F)
- Compatible with ALL Veeder Root mechanical computers
(101, 2001, 2002, 2002E, VR-10, VR-10/4) for money or gallons

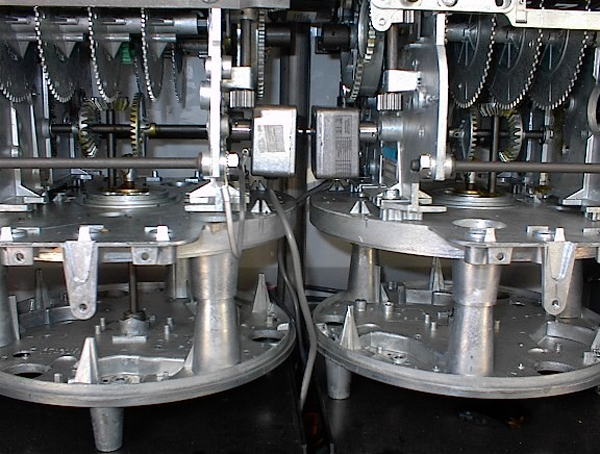

- Small size allows mounting where other pulsers cannot
- 12VDC and 120VAC models available
- Dual output model available
- 2 year warranty
