MR1 Pulser
The MR1 Pulser was designed to fit many different models of meter-registers.
It contains a digital pulse filter, which eliminates overcounting due to vibration.
MR1 Pulser Specifications
|
INPUT Specifications |
Wire Color |
Black (110vac), Orange (12vdc) |
Operating Voltage |
12VDC (MR1-12-SO-B or MR1-12-DO-B)
120VAC (MR1-110-SO-B or MR1-110-DO-B) |
Operating Temperature |
-40 to +150 degrees F |
Maximum Speed |
240 RPM |
OUTPUT Specifications |
Wire Color |
Red wires |
Switching Voltage |
5 to 300 Volts AC or DC |
Maximum Current |
300 mA |
On Resistance |
25-35 Ohms |
MODEL NUMBERS
|
MODEL NUMBER |
DESCRIPTION |
MR1-12-SO |
MR1 Pulser, 12 volts DC, Single Output |
MR1-12-DO |
MR1 Pulser, 12 volts DC, Dual Outp |
MR1-110-SO |
MR1 Pulser, 110 volts AC, Single Output |
MR1-110-DO |
MR1 Pulser, 110 volts AC, Dual Output |
FEATURES
- 10 pulses per gallon output, no configuration required.
- Digital pulse filtering eliminates overcounts.
- Simple bolt on installation.
- Intrinsically safe circuitry, no conduit required!
- Environmentally coated circuitry eliminates moisture problems.
- Heavily filtered power supply eliminates noise problems
- Extended temperature operation. (-40 to 150 degrees F)
- 12VDC and 120VAC models available
- Dual output model available
- 2 year warranty
Compatibility
Fill-Rite Model 800
Fill-Rite Model 900
GPI

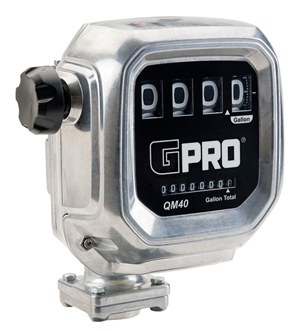

Model QM40
GPI

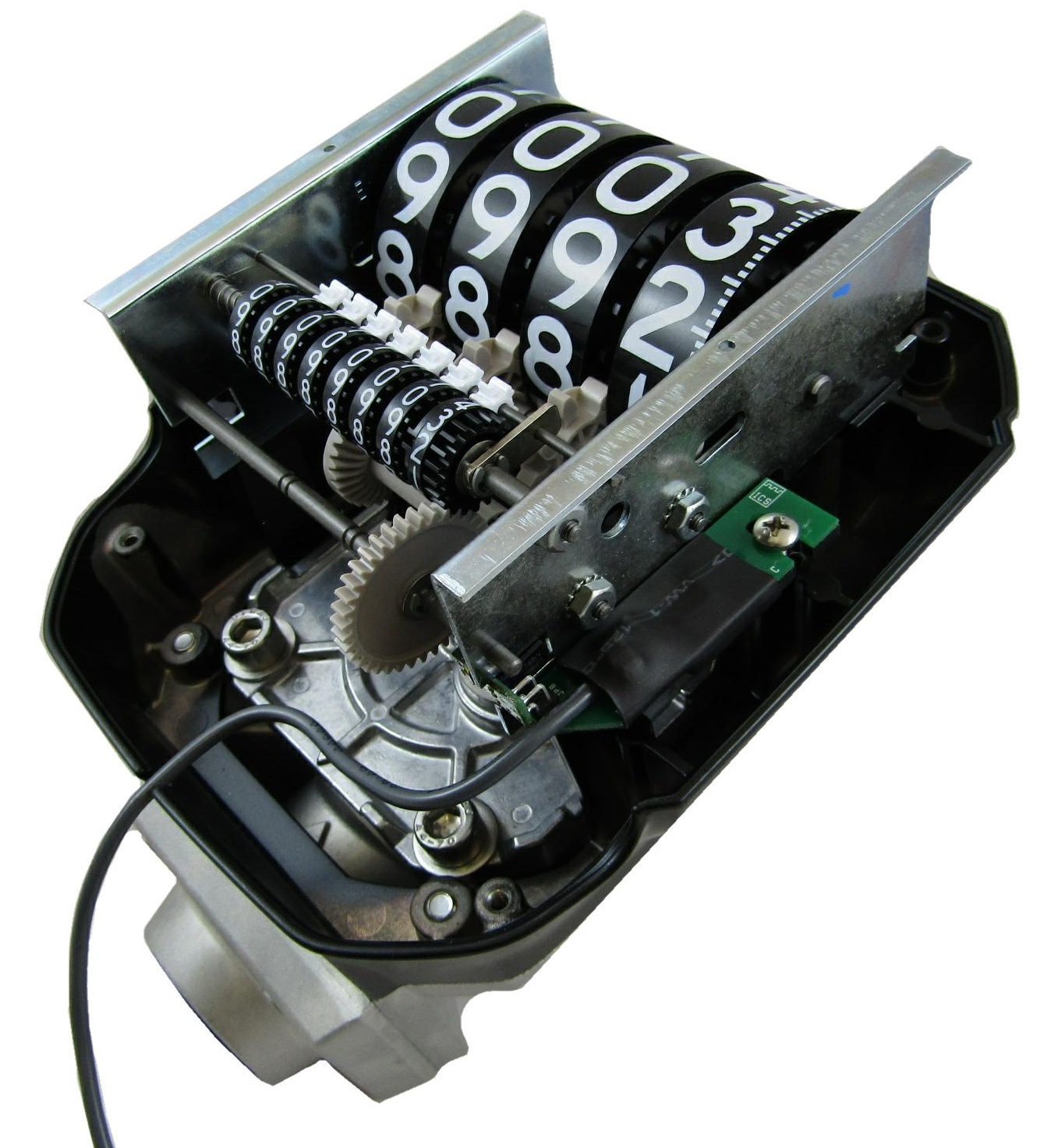

Model QM150
Model QM240
GPI

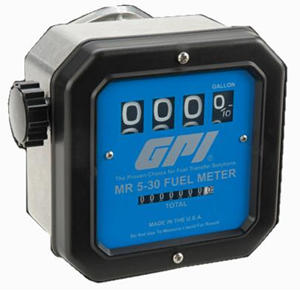

MR 5-30
Dresser Wayne Model 700R
Piusi

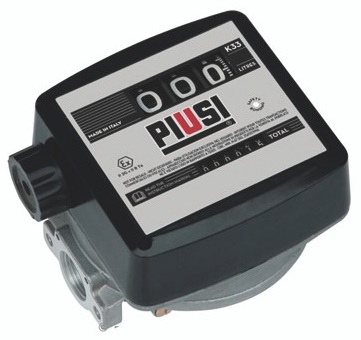

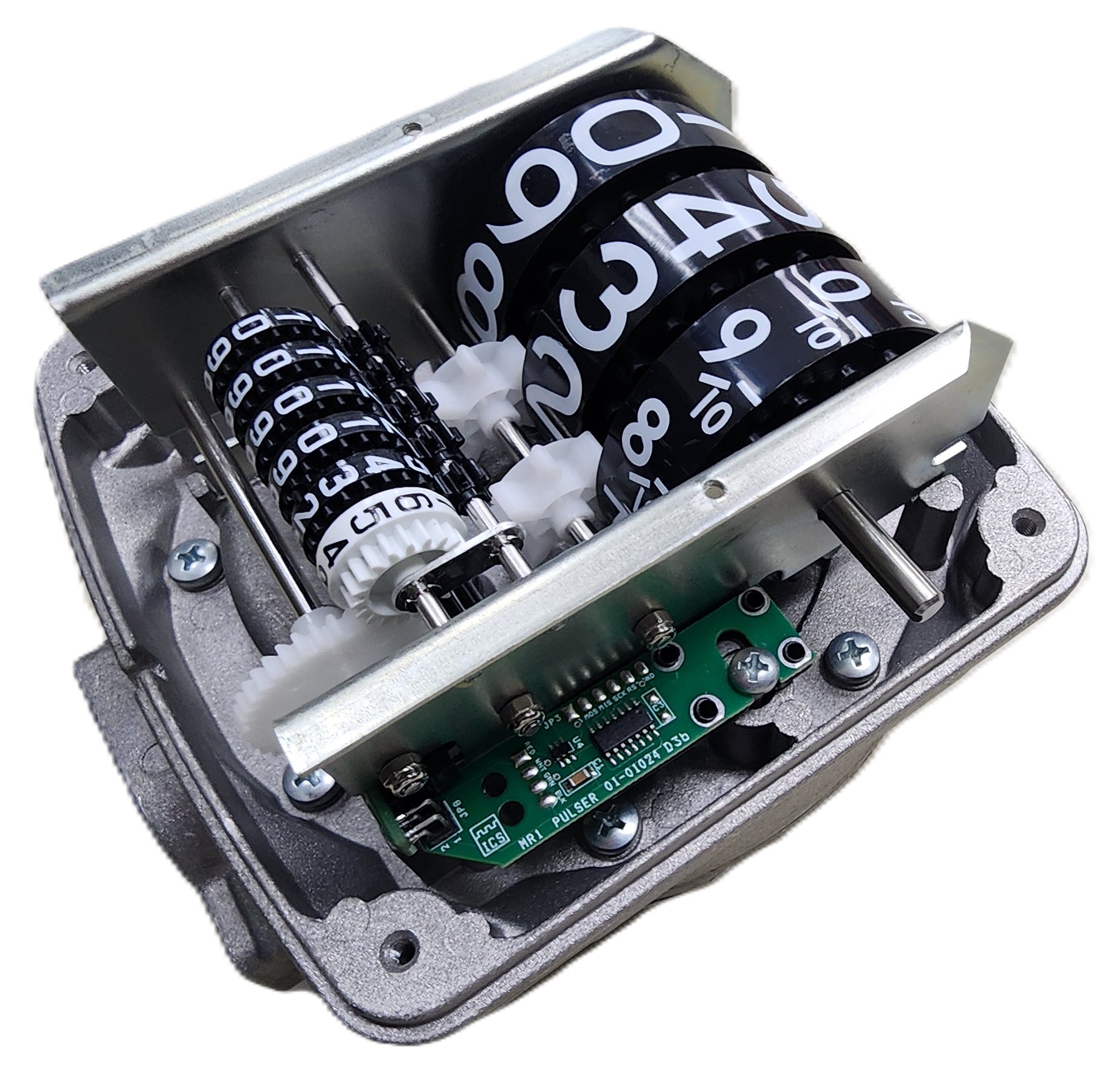

Model K33
Silver Face
Piusi

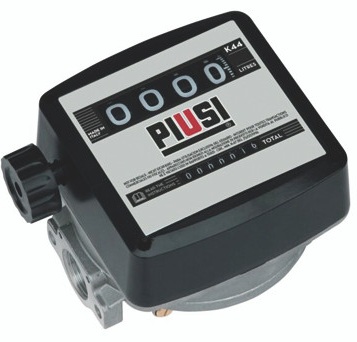

Model K44
Silver Face
Piusi

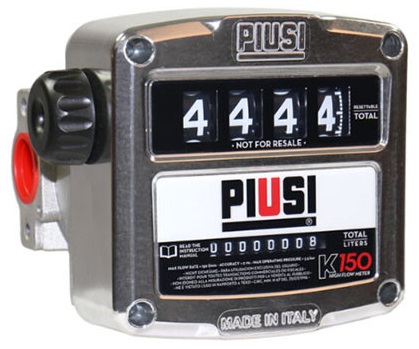

Model K150
