GPI2 PULSER SPECIFICATIONS

 INPUT Specifications

 Wire Color

Black (110vac), Orange (12vdc)

 Operating Voltage

12VDC (GPI1-12-SO or GPI1-12-DO)


120VAC (GPI1-110-SO or GPI1-110-DO)

 Operating Temperature

-40 to +150 degrees F

 Maximum Speed

 30 GPM

OUTPUT Specifications

Wire Color

Red wires

 Switching Voltage

5 to 300 Volts AC or DC

Maximum Current

300 mA

 On Resistance

25-35 Ohms

MODEL NUMBERS



MODEL NUMBER

 DESCRIPTION

GPI2-12-SO

GPI2 Pulser, 12 volts DC, Single Output

GPI2-12-DO

GPI2 Pulser, 12 volts DC, Dual Output

GPI2-110-SO

GPI2 Pulser, 110 volts AC, Single Output

GPI2-110-DO

GPI2 Pulser, 110 volts AC, Dual Output
GPI2 Pulser

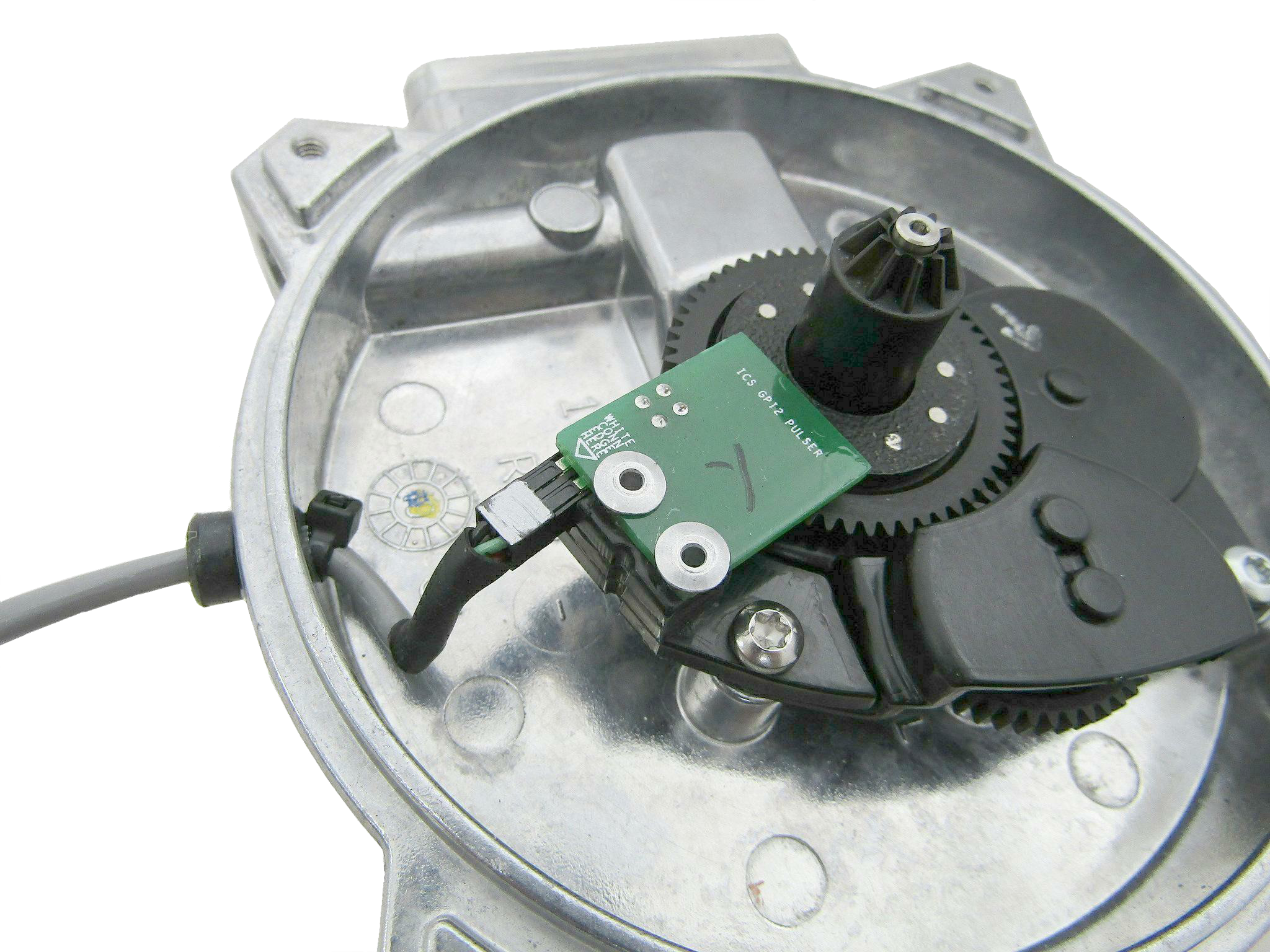

The GPI2 Pulser is designed to fit the GPI M30 meter-registers. The GPI2 contains direction sensing technology to eliminate extra pulses due to vibrations or gear-play.

FEATURES



  • Fits GPI M30 meter-registers.

  • 10 pulses per gallon output, no configuration required.

  • Fits the new GPI model MR-5-30 Register!

  • Direction sensing and digital filtering eliminates overcounts.

  • Pulser mounting allows the register to be attached in any orientation.

  • Intrinsically safe circuitry, no conduit required!

  • Environmentally coated circuitry eliminates moisture problems.

  • Heavily filtered power supply eliminates noise problems

  • Extended temperature operation. (-40 to 150 degrees F)

  • 12VDC and 110VAC models available

  • Dual output model available

  • 2 year warranty
