RC1 Noise Suppressor

The RC1 Noise Suppressor is designed to eliminate noise caused by switching of inductive loads. Pump motors, solenoid valves, motor contactors, and other inductive loads cause high voltage spikes on the AC line when they are switched on or off. The RC1 eliminates these spikes at the source, preventing them from affecting sensitive equipment.

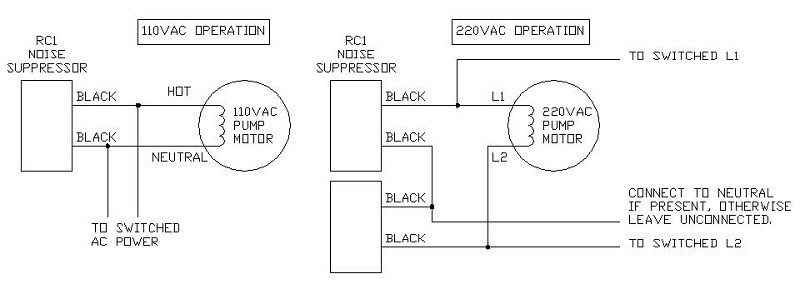

Connect the RC1 directly across the hot and neutral wires of the load, as close as possible to the coil or motor winding. This will allow the RC1 to filter the inductive noise before it travels to other devices. For best results, install one RC1 on each suction motor, solenoid valve, and motor contactor at the site. The RC1 is constructed as small as possible to allow it to be mounted inside the junction box of the dispenser.

  Model Numbers

Model Numbers

 Description

 RC1

 RC1 Noise Suppressor


RC1 Noise Suppressor Specifications

 Input

Black Wires

 Operating Voltage

 Maximum 250 Volts AC

 Internal Capacitance

 0.1 µF

 Internal Resistance

 68 Ohms

 Dimensions

1.0 x 0.6 x 0.4 Inches

 Wire Length

 5 inches
