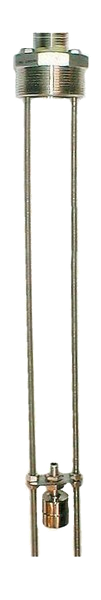

LA1 Tank Probes

The LA1 Tank Probes are built from 100% stainless steel

for years of reliable operation

For sensing high or low level conditions in an above ground tank
All stainless steel probe hardware and level sensors
Teflon wire insures maximum resistance to chemicals
Probes are available with single or multiple switches for high level and/or low level sensing
Switch trigger points are easily adjustable in the field
Each float switch can be set for normally open, or normally closed
PR1 Probes can be ordered in 3, 6, 9, or 12 foot lengths
Fits a standard 2" bung

LA1-PR1 PROBE FEATURES

LA1-PR2 PROBE FEATURES

SPECIFICATIONS
INPUT Specifications
Materials	Probe: 304, 316, 18-8 Stainless Steel Tank Fitting: 304 Stainless Steel Conduit Fitting: 304 Stainless Steel Wire: Teflon coated
Rating	10A@120VAC or 6A@240VAC
MTBF	10,000 Operations
Operating Temp	-20 to 150 F

MODEL NUMBERS
MODEL NUMBER	DESCRIPTION
LA1-PR1-1S-3F	LA1 Level Probe, 1 Switch, 3 Feet length
LA1-PR1-1S-6F	LA1 Level Probe, 1 Switch, 6 Feet length
LA1-PR1-1S-9F	LA1 Level Probe, 1 Switch, 9 Feet length
LA1-PR1-1S-12F	LA1 Level Probe, 1 Switch, 12 Feet length
LA1-PR1-2S-3F	LA1 Level Probe, 2 Switch, 3 Feet length
LA1-PR1-2S-6F	LA1 Level Probe, 2 Switch, 6 Feet length
LA1-PR1-2S-9F	LA1 Level Probe, 2 Switch, 9 Feet length
LA1-PR1-2S-12F	LA1 Level Probe, 2 Switch, 12 Feet length
LA1-PR2	LA1 Interstitial / Sump probe, 12 Foot Wire
