MODEL NUMBERS
|
MODEL NUMBER |
DESCRIPTION |
LA1-AU-2C |
LA1 Alarm Unit, Battery Powered, 2 Channel |
LA1-AU-4C |
LA1 Alarm Unit, Battery Powered, 4 Channel |

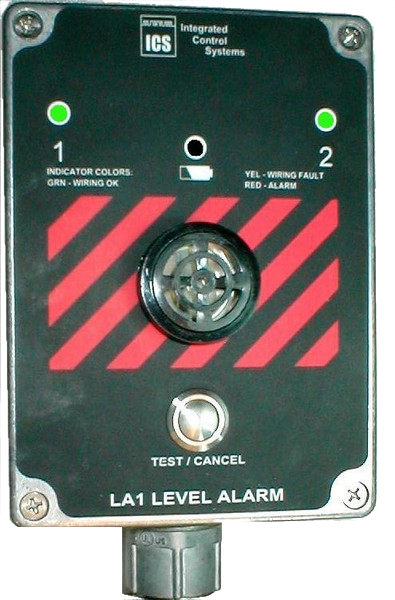

LA1 Level Alarm
A durable, cost-effective solution for sensing liquid levels with either 2 or 4 channels. Use as a replacement for other brands. Compatible with most other brands of probes. Compare the LA1 features and pricing to any other level alarm on the market
SPECIFICATIONS
|
INPUT Specifications |
Materials |
Heavy Duty Cast Aluminum
316 Stainless steel hardware
304 Stainless steel pushbutton
Polyester overlay |
Hardware |
Stainless steel |
Classification |
NEMA 4X - weather sealed |
Temperature |
-20 to 50 degrees F |
Case Size |
4.5" X 3.5" X 1.25" |
- CNC machined cast aluminum NEMA-4 cabinet
- Battery powered for years of trouble-free operation. (Batteries are easily available, not specialty)
- Optional intrinsically safe AC power barrier with external annunciator and/or valve switching outputs.
- Draws zero power when idle for maximum battery life
- Probes are always monitored, even when unit is asleep
- Can be used for high level, low level, interstitial space, sump, or many other applications
- 95db audible alarm
- High brightness, sunlight readable indicators display GREEN (circuit OK), or RED (alarm condition)
- Low battery indicator
- Stainless steel pushbutton for maximum reliability
- Available with either 2 or 4 probe channels
- Intrinsically safe operation (Complies with ANSI / UL 913, Class 1, Div. 1&2, Group C and D operation)
2 HOSE UNIT
4 HOSE UNIT
