MODEL NUMBERS



MODEL NUMBER

 DESCRIPTION

LA1-ASW-110

Acknowledgement Switch 110VAC


SPECIFICATIONS

 INPUT Specifications

Cabinet Type

NEMA-4X Weatherproof

Cabinet Materials

Cast Aluminum with Stainless Steel Hardware

Operating Voltage

90 to 150 Volts AC

Max. Load Current

10 Amps AC

Operating Temp

-40 to 150 F

Cabinet Dimensions

4.5" X 3.5" X 1.25"

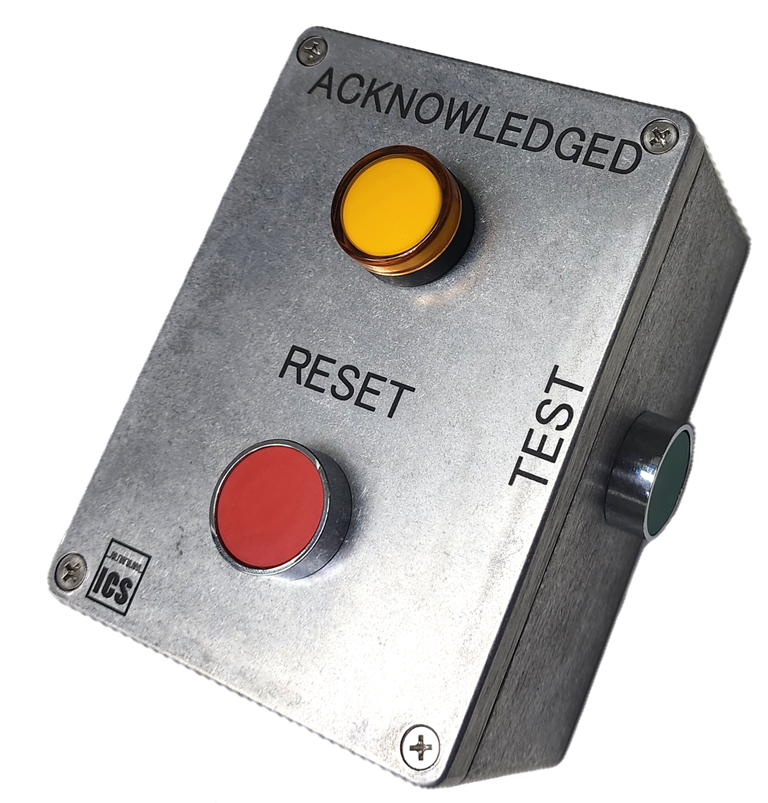

LA1 Alarm Acknowledgement Switch



The LA1 Acknowledgement Switch is used with any brand of tank alarm source and an external annunciator. During an alarm condition, it allows the operator to silence the alarm for the duration of the alarm condition. A test button also allows the operator to test the annunciator at any time.



  • Allows testing and silencing of alarms with any brand of tank monitor or tank alarm

  • Acknowledged light indicates when the alarm has been silenced

  • Automatically resets when alarm condition stops

  • Weatherproof switches and indicator

  • LED indicator for long life operation

  • CNC machined NEMA-4X weather-proof aluminum cabinet will never rust or fade

  • Paint filled laser engraved lettering for outdoor durability

  • Stainless steel hardware

  • Threaded conduit fitting included

  • 2 YEAR WARRANTY
